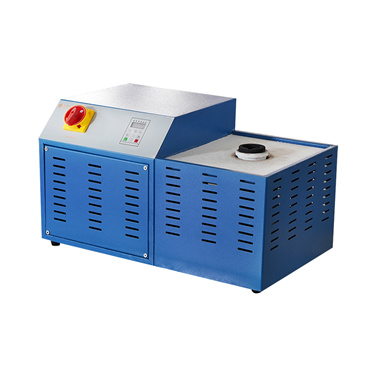

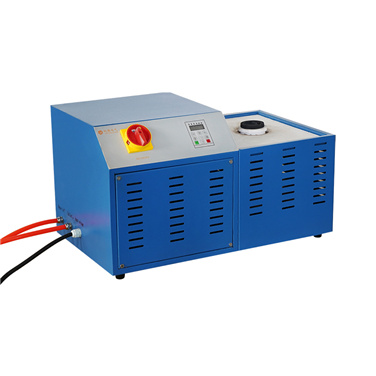

Gold melting machine

Gold melting machine

  • Crucible: Graphite crucible
  • Capacity:1kg-10kg
  • Melting Time: 3mins-5mins
  • Meltable material: Gold, silver, platinum, and rhodium
  • Configuration: Melting body, the crucible, water pipes, tongs, water pump

Video:

Application:

Hongteng Mini gold melting furnace is suitable for melting gold, silver, platinum, copper, aluminum and some other metal materials that the melting point should be less than 2000℃.

Product Features:

  • 1. Hongteng induction gold melting furnace is mainly used for the melting of precious metals: platinum, palladium, rhodium, gold, gold powder, silver, copper, aluminum, zinc and other materials
  • 2. Fast melting speed: the fastest melting time is less than 3 minutes, and the heating speed can be adjusted and controlled.
  • 3. The electromagnetic stirring effect of the induction gold melting furnace is good, which is conducive to the uniformity of the temperature and structure of the molten metal.
  • 4. The power of the induction gold melting furnace can be adjusted from 5KW to 100KW. The melting capacity can be considered comprehensively, and the induction coil can be designed according to specific requirements.
  • 5. The induction gold melting furnace has high heating efficiency, water cooling, and low noise during operation.
  • 6. Energy saving and environmental protection of induction gold melting furnace: the thermal efficiency reaches more than 95%, which is a perfect substitute for methane gas, coal gas, coke and electric resistance furnace.
  • 7. The maximum temperature of the induction gold melting furnace can reach 1500-2000 degrees.
  • 8. The gold melting furnace is safe and reliable: the machine has automatic protection functions such as overcurrent, lack of phase, lack of water, overvoltage, short circuit and overheating.
  • 9. The gold melting machine does not need to be installed,small size, light weight, movable. It has been professionally debugged before leaving the factory, and it can work with water and electricity.

Specification:

Specification and Technical Parameter
Model Voltage Power Melting Time Furnace size Packing size Gross Weight
1KG 220V 3KW 3 Mins 650*350*350mm 720*420*410mm 20KG
2KG 220V 5KW 3 Mins 650*350*350mm 720*420*410mm 26KG
3KG 380V 7KW 3 Mins 870*355*400mm 940*425*470mm 32KG
5KG 380V 10KW 4 Mins 870*355*400mm 940*425*470mm 38KG
8KG 380V 15KW 4 Mins 850*807*345mm 920*877*415mm 48KG
10KG 380V 20KW 5 Mins 850*807*345mm 920*877*415mm 58KG
