Induction melting steel furnace

Induction melting steel furnace

  • Melting Body Material :Aluminum shell or steel shell
  • Capacity :0.1T-20T induction melting furnace
  • Melting Time : 40mins-60mins per batch
  • Meltable material : Iron, steel, stainless steel, aluminum, copper
  • Configuration : Melting furnace body, power cabinet, capacitor, reducer, control box

Video:

Application:

Hongteng's medium frequency industrial induction furnaces manufacturer can provide all your foundry's melting equipment needs, providing outstanding performance and outstanding durable melting machine. We offer a wide range of Small Induction Furnaces, Medium Induction Furnaces, Large Steel Melting Furnaces to meet the stringent requirements of various foundries, specialty steel foundries and the precious metals industry, as well as an alternative designed for foundries in small to medium applications Designed for fully automatic induction furnaces, including our heavy duty industrial steel shell furnaces for large foundries.

Hongteng also offer crucible furnaces. They are melters with high frequency induction power supply that can quickly and efficiently melt non-ferrous metals such as aluminum, copper, etc. For easier metal replacement, Hongteng also offers several detachable crucible furnaces. All of our induction melting furnace systems are tailored to your specific application to ensure you get the most efficient melting system possible.

Product Features:

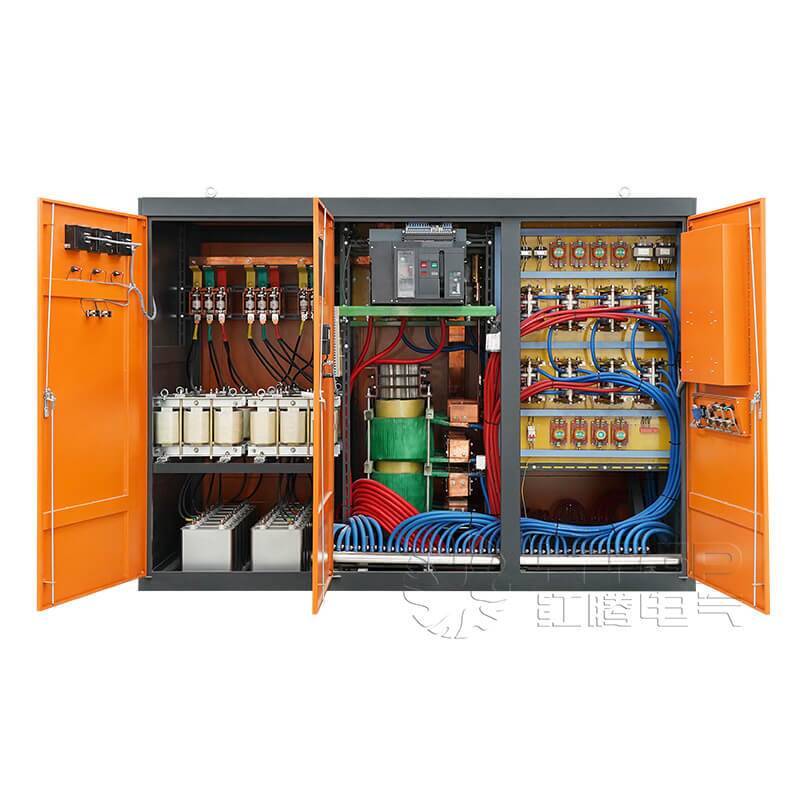

  • 1. Hongteng induction melting furnace is mainly composed of melting power control cabinet and melting furnace body. The smelting machine can work continuously for 24 hours.
  • 2. The MF induction furnace has a self-checking function and a water leakage alarm device. The smelting equipment can detect the information of water temperature, water pressure, overcurrent, overpressure and phase loss in real time.

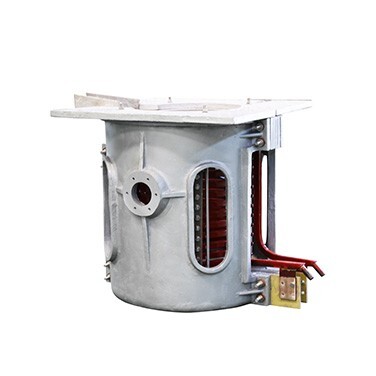

  • 3. The aluminum shell induction furnace adopts more high-quality aluminum alloy shells to reduce the magnetic flux leakage and ensure the furnace chamber.
  • 4. The induction coils of the melting furnace all use standard T2 copper tubes, the melting equipment can provide more energy for the foundry, and the open space between the turns of the melting induction coil can improve the electricity efficiency of the foundry and the melting plant.
  • The cooling ring is designed at the bottom of the Hongteng industrial induction furnace, which can prolong the service life of the furnace lining.
  • 6. The melting furnace body makes full use of the whole brick to replace ordinary asbestos, which greatly reduces the use cost of the melting furnace body.
  • 7. The main control board of the intermediate frequency power supply cabinet is controlled by microcomputer, which can realize one-key zero-voltage startup.

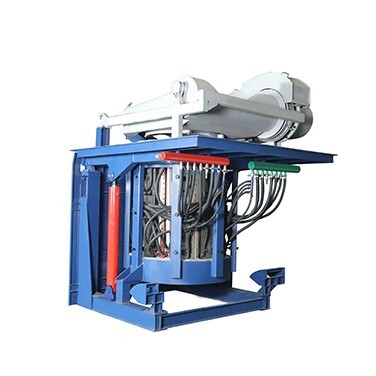

  • 8. The hydraulic tilting reducer equipped with three-stage turbine speed can make the tilting furnace have good self-locking and stable rotating performance.

Specification:

Specification and Technical Parameter
Model Powder Input Voltage MF Frequency(HZ) Furnace body size
0.1T 100KW 3*380V 2500 φ630
0.25T 250KW 3*380V 1500 φ730
0.5T 400KW 3*380V 1000 φ1100
1T 800KW 3*660V 1000 φ1180
2T 1500KW 3*660V 500 φ1350
3T 2000KW 3*950V 500 φ1400
5T 3000KW 3*950V 500 φ1650
10T 6000KW 3*1250V 300 φ2000
