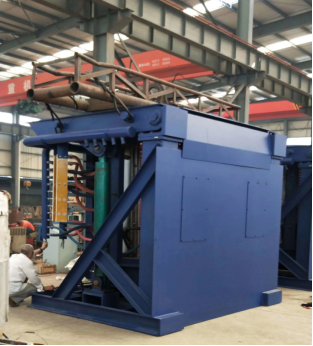

Metal melting furnace for sale

designed by computer simulation model

1. Hongteng steel shell melting furnace have better stable and security function;

2. Hongteng steel shell furnace structure is designed by computer simulation model, Furnace body tilting and hydraulic rod bearing are more reasonable.

3. Furnce energy saving 3%-5% than common furnace

1.Hongteng furnace top and bottom structure using High-temperature refractory cement integral pouring and molding, which is firm and durable.

1.The furnace mouth is made by steel, which is more durable than the traditional refractory brick and doesn’t need to replaced.

1. Hydraulic cylinder has a safety self-locking mechanism! which effectively prevents the furnace body from turning down due to the burst of the hydraulic oil pipe and increases the safety performance.

2. Steel shell furnace tilting system adopts double pumps and double motors, one for use and one for standby, thus effectively ensuring the operation efficiency.

1.Hongteng steel shell furnace are energy saving, power consumption is 3%-5% lower than common furnace.

2.Hongteng brand furnace magentic yoke is made of high-quality cold rolled curved silicon steel sheet; Magnetic yoke coverage rate can reach 80%,means the magnetic conductors coverage, excluding fixtures.

1. Magnet conductor thickness only 0.23 mm,material cost 3885USD/T.

Other brand furnace magnet conductor thickness 0.35-0.5 mm,material cost only 1328USD/T. Energy cost even higher.

2. Hongteng 3T and smaller model steel shell furnace magnetic yoke using air cooling system, T6 aluminum alloy fixture, No water cooling, greatly reducing the later maintenance cost of the furnace body;

1. Hongteng furnace induction coil is made of a whole seamless copper tube without welding. No water leakage;

2. The induction coil is coated with 2 layers of insulating material: A.High-temperature insulating paint: Prevents coil from short-circuit spark caused by dust and conductive substances. B. The induction coil is coated with 1CM thick refractory cement gum: Prevent the damage of molten steel to the yoke under the condition of steel leakage.

3. All induction coil are equipped with anti-falling devices;

1. Furnace cabinet are made by steel, more durable and good design

1. Hongteng furnace thyristor parameter is same,more professional

2. Hongteng thyristor Turn-off time:17-18 micro second,faster response and better performance. Other brand 25micro secons ;

3. In order to facilitate the SCR installation, our thyristor leads are customized cathode and control grade twisted pair tin-plated high temperature wires, and the leads do not need welding.
