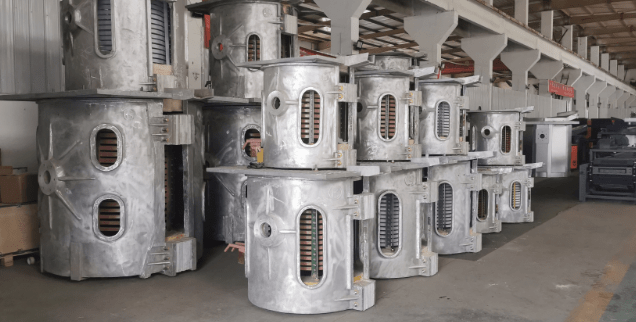

1 ton medium frequency induction furnace

Author : Hongteng Time: 2022-10-10

Intermediate frequency induction automatic heating furnace is a non-standard heating equipment that uses intermediate frequency induction heating to heat metal workpieces.

Today, Hongteng editor will introduce the 1 ton intermediate frequency induction furnace.

Equipped with automatic feeding system, plc control system and infrared temperature measurement system and other equipment, the intermediate frequency induction heating becomes an automatic heating mode, which has the advantages of automatic feeding, automatic heating and temperature control, and has become a veritable automatic heating production line.

Process parameters:

Uses: used for automatic heating of metal workpieces such as round steel, aluminum rods, copper rods, etc.

Equipment name: 1 ton induction heating furnace (non-standard products, customized processing)

Workpiece size range: diameter 15mm diameter 500mm, unlimited length

Heating temperature: determine the heating temperature according to the user’s thermal processing requirements.

Control system: The entire heating process is automatically controlled by PLC, and production records such as heating quantity are displayed in a timely manner.

This console is used alone, with a specially customized man-machine interface, highly user-friendly operation instructions, all-digital, high-depth adjustable parameters, one-key restore function, and easy operation.

The composition of the heating furnace:

Intermediate frequency induction heating power supply, composed of rectifier thyristor and inverter thyristor, reactor, main control circuit, etc.

The furnace frame is mainly designed for the inductor heating coil to support the inductor furnace head, including capacitor bank, water circuit, circuit and gas circuit.

The induction heating system is composed of spiral induction coil and furnace lining material, furnace mouth plate, coil bottom bracket, cooling water circuit, etc.

The cooling circulation system adopts closed cooling tower circulation cooling system

Features of medium frequency induction furnace:

The induction heating power supply using thyristor frequency conversion technology has low power consumption and can be used when it is powered on; it has fast heating speed, high efficiency and short heating time.

This is what we share today, I hope it can help you. Welcome to Luoyang Hongteng to learn more about induction furnaces.
